Service Networking Configuration

​
Overview

Every service in Ardor gets network connectivity out of the box. Services can talk to each other over the internal network, and you can expose them publicly when needed.
Cerebrum configures networking. Ask “connect my API to the database” or “make this service public” — Cerebrum will set up the connections and environment variables. The details below explain how it works.

Internal Network

Services communicate privately using internal URLs. Fast, secure, no internet roundtrip.

Public Access

Expose services to the internet with a public URL for APIs, websites, and webhooks.

​
How Services Connect

Each service gets two URLs:
URL TypeUse For
InternalService-to-service communication
PublicBrowser access, external clients

​
Cross-Service Communication

Backend services can reach any other service by its internal URL:
Browser can’t use internal URLs. If your frontend runs in the browser (React, Vue, etc.), it’s outside Ardor’s network. Set up a reverse proxy in your frontend service to route API requests internally — this is the recommended pattern.

​
Public vs Private Services

When configuring a service, you choose its visibility:
When to use:
  • Web applications users visit
  • APIs external clients call
  • Webhook endpoints
What happens:
  • Service gets a public URL: https://<port>-<uuid>.ardor.cloud
  • Anyone on the internet can access it
  • Still accessible internally too
Never expose databases publicly. Always keep them private and connect from your backend services using internal URLs.

​
Bind Custom Domain

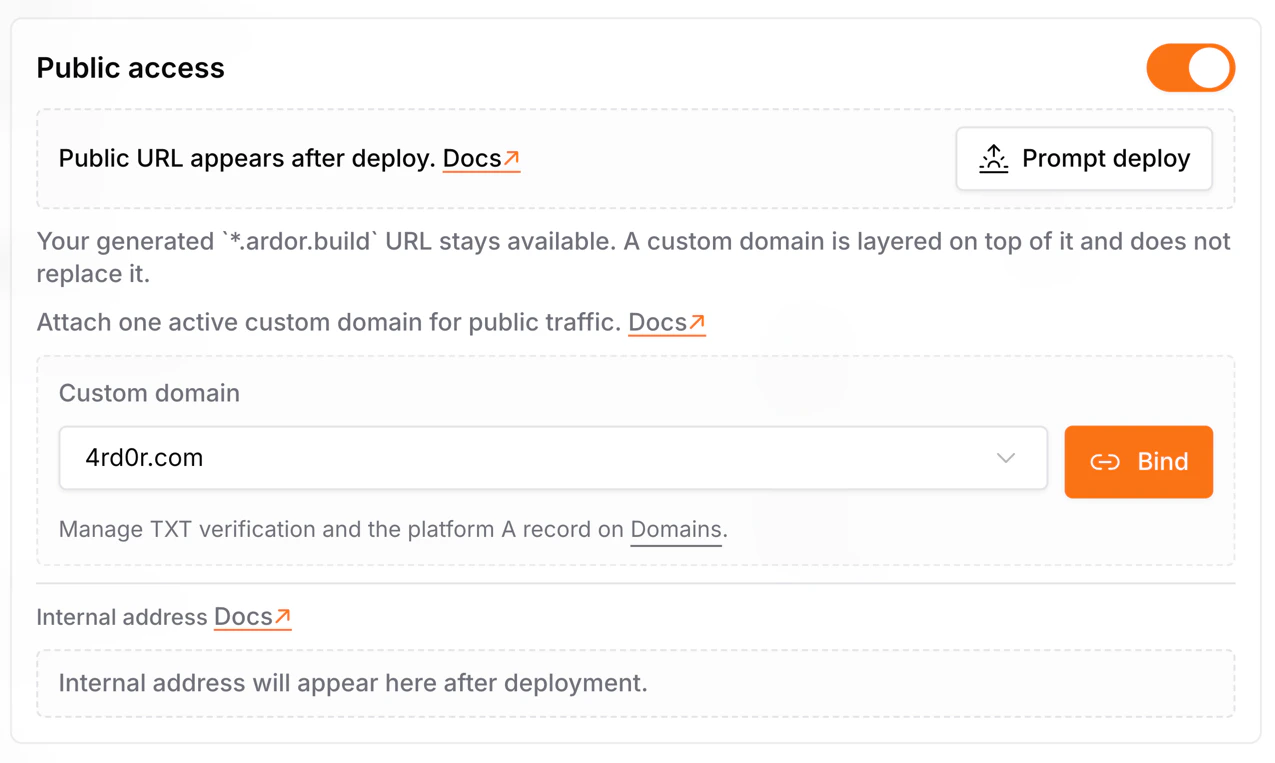

Service Domain Binding You can bind a custom domain to a service in a specific environment. The service must be Public for that.
1

Choose the Environment

Select the environment where the domain should route traffic, such as development, staging, or production. Domain bindings are environment-specific.
2

Select a Public Service

Pick the service that should receive traffic for the domain. Private services cannot be selected as custom domain targets.
3

Deploy the Environment

Deploy the environment after saving the binding so the updated networking configuration is applied at runtime.
After you select a custom domain, Ardor updates the relevant system variables for that service.
Changing or removing a custom domain follows the same rule: save the change, then deploy the environment so services receive the updated system variables and routing configuration.

​

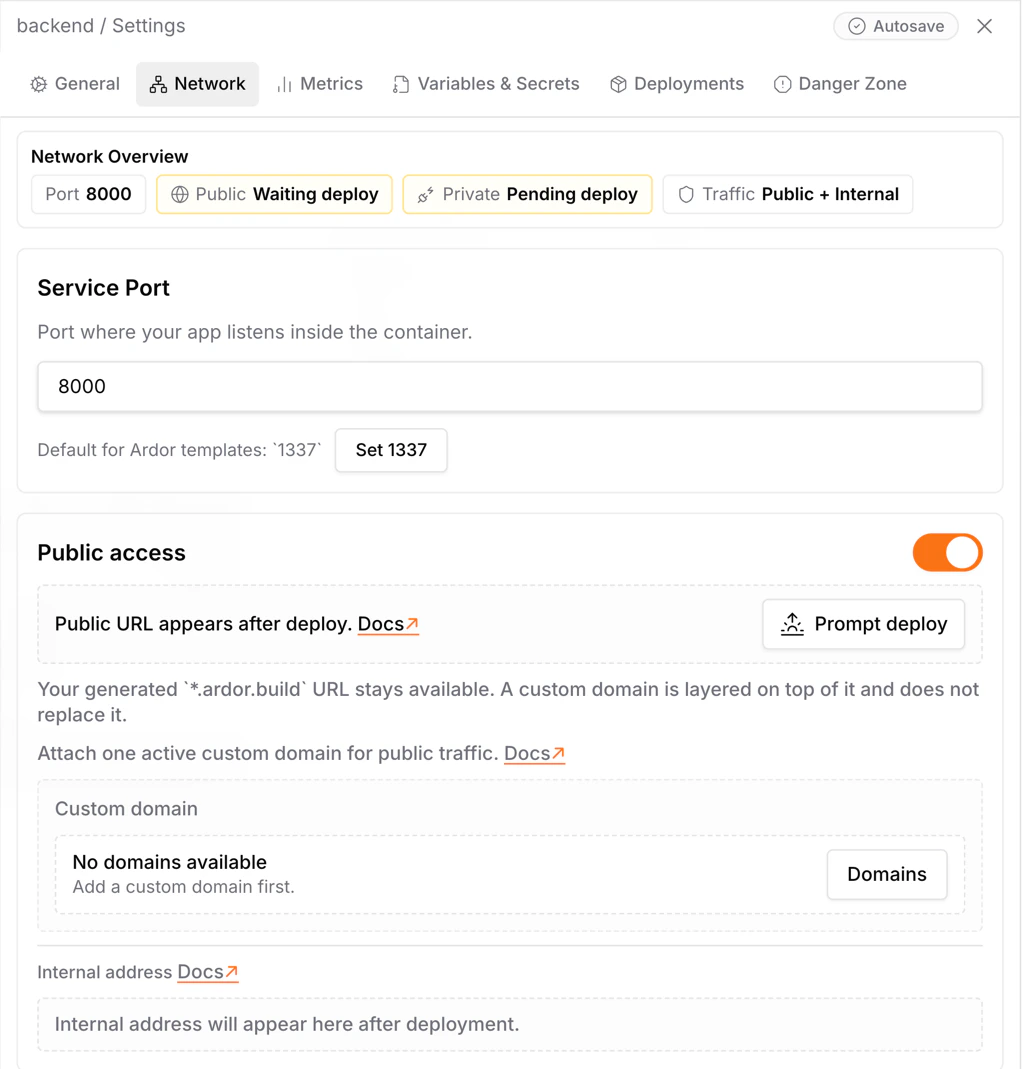

Port Configuration

Each service listens on a specific port. Ardor passes this as the PORT environment variable.

​
How Ports Work

  1. You configure the port in service settings (default: 8080)
  2. Ardor injects it as PORT environment variable
  3. Your app reads PORT and listens on it
  4. Both internal and public URLs route to this port

​
Reading the Port

import os
port = int(os.environ.get('PORT', 8080))
app.run(host='0.0.0.0', port=port)
Always bind to 0.0.0.0, not localhost or 127.0.0.1. Otherwise your service won’t be reachable from outside the container.

​
Port in Internal URL

The port is included in the internal URL you get from service settings. Use it directly — no need to specify the port separately.

​
Common Patterns

​
API + Database

Setup:
  1. PostgreSQL service — Private
  2. API service — Public, connects via internal URL stored in env var
Setup:
  1. PostgreSQL — Private
  2. Redis — Private
  3. API Backend — Private, only reachable via internal URL
  4. Frontend — Public with reverse proxy, routes /api/* to backend internally
Best practice: Keep your API backend private and route requests through your frontend’s reverse proxy. This way only one service is exposed to the internet.

​
Frontend + Public API (when needed)

If you intentionally need a public API (for external clients, mobile apps, webhooks): Use this when:
  • External apps need to call your API directly
  • You’re building a public API for third parties
  • Mobile apps need direct backend access

​
Microservices

Setup:
  • Only the API Gateway is public
  • All microservices are private, communicate via internal URLs

​
Troubleshooting

Check:
  • Is the target service running? Check its status and logs
  • Are you using the correct internal URL and port?
  • Are both services in the same environment?
Ask Cerebrum to help diagnose connection issues.
Cause: Target service isn’t listening on the expected port.Check:
  • Is the service reading the PORT environment variable?
  • Is it binding to 0.0.0.0?
  • Check the service logs for startup errors
Check:
  • Is the service set to Public visibility?
  • Is the service running and healthy?
  • Is it listening on the configured port?
Check:
  • Is the database service running?
  • Are you using the internal URL (not trying to connect externally)?
  • Check database logs for connection limit issues

​
Best Practices

Never expose databases to the internet. Always use private visibility and connect via internal URLs.
Unless you need a public API for external clients, keep your backend private and route requests through your frontend’s reverse proxy. One public endpoint = smaller attack surface.
Don’t hardcode internal URLs. Store them in variables so you can change them without code changes.
DATABASE_HOST = os.environ['DATABASE_HOST']
Only expose what needs to be public. Fewer public endpoints = smaller attack surface.
Add authentication for extra security on services that handle sensitive data.

​
